TH-650
Speaker Horn
TH-650

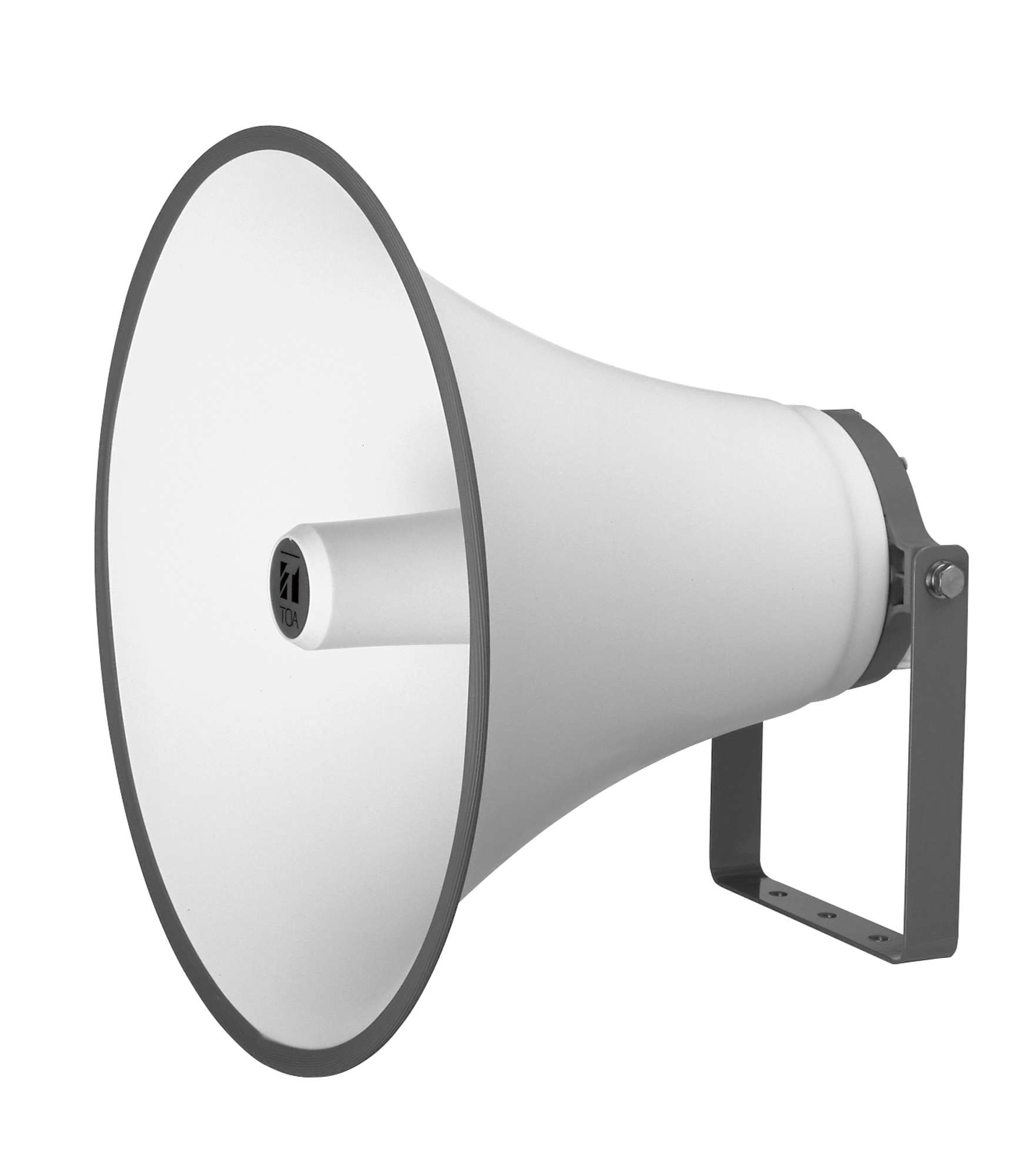

The TH-650 is a speaker horn to be used in combination with an optional driver unit. Its powder-coated finish, and stainless steel screws ensure the unit's weatherproof capability.
- Weatherproof construction for outdoor use
- Durable construction provides reliable operation over a long time
- Round shape ensures high speech clarity and sound quality and symmetrical sound dispersion - also suitable for music reproduction
- Shock-resistant
- Aluminium horn with durable powder coating

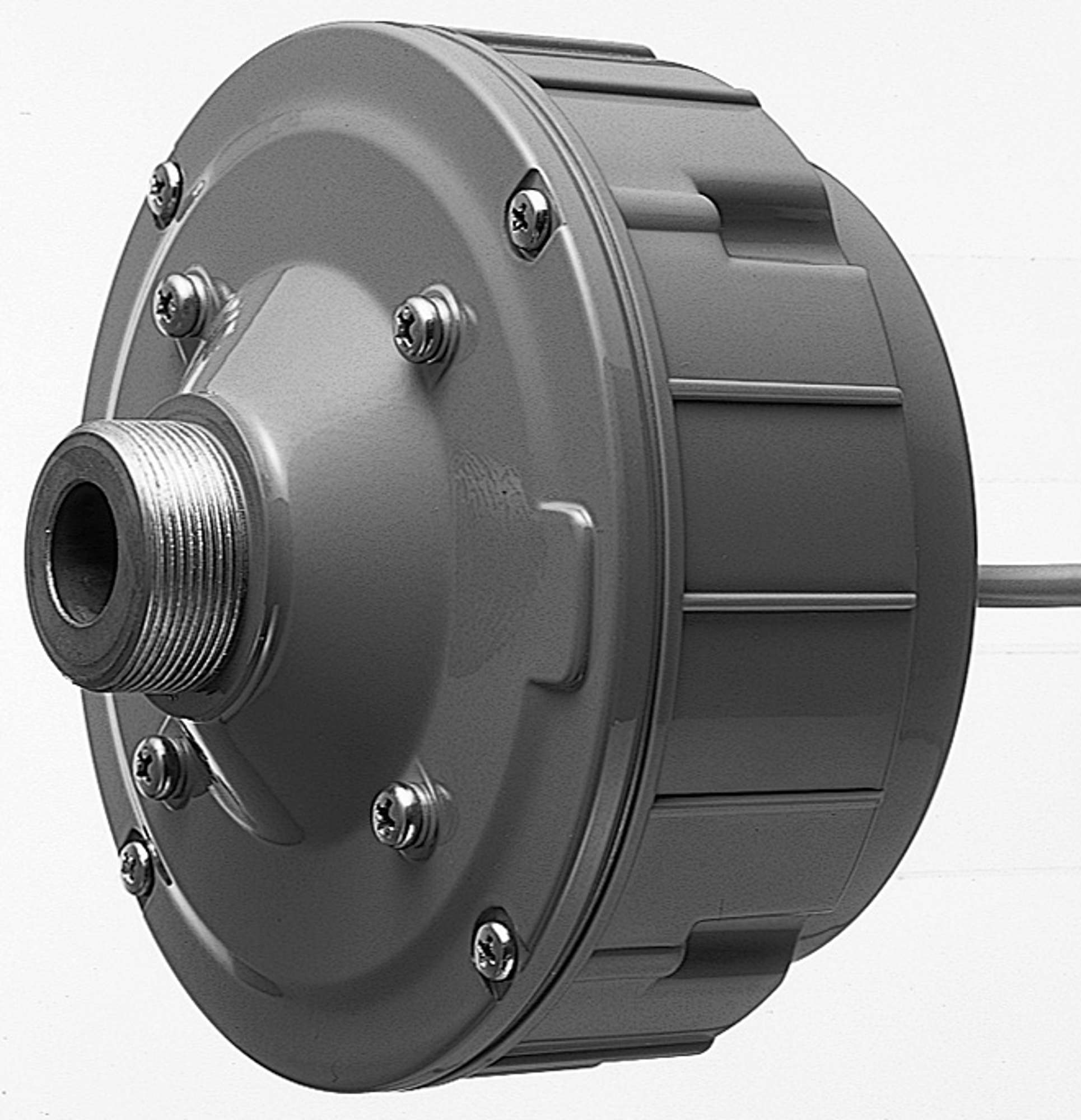

- For use with drivers TU-631, TU-651 or TU-631M / TU-651M (optional)
Compatible Driver
TU-631, TU-631M, TU-651, TU-651M
Driver Coupling
1 - 3/8 18 threads (inch screw)
Sound Pressure Level
110 dB (1 W, 1 m) (When operated with a driver.)
Frequency Response
200 Hz - 6 kHz (When operated with a driver.)
Dust/Water Protection
IP65 (When operated with a driver.)
Operating Temperature
-20 ℃ to +55 ℃ (must be free from dew condensation)
Finish
Horn flare and flange: Aluminum, off-white, powder coating
Reflector horn: ABS resin, off-white
Bracket holder: Aluminum, gray, powder coating
Bracket: Steel, gray, powder coating
Screws and boits: Stainless steel
Reflector horn: ABS resin, off-white
Bracket holder: Aluminum, gray, powder coating
Bracket: Steel, gray, powder coating
Screws and boits: Stainless steel
Dimensions
Φ500 x 394 (D) mm
Weight
2.9 kg
Please download Datasheet to access full specifications.
