VX-3016F AMQ
Voice Alarm System Frame
VX-3016F AMQ

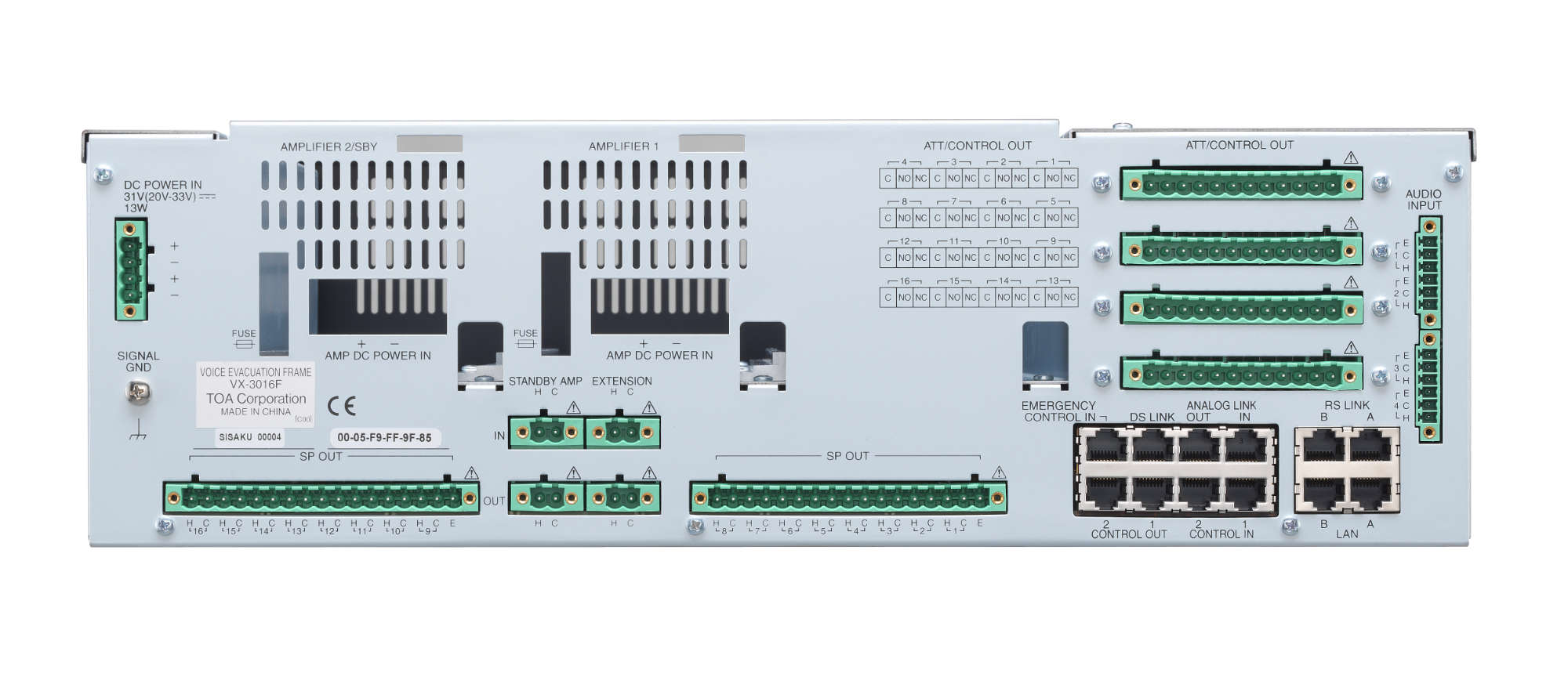

The VX-3016F AMQ is a device designed to control the Voice evacuation announcements of TOA's VX-3000 Series rack-mount type voice evacuation system which is compliant with the European Standard EN54 for fire alarm systems. It has audio input terminals and can output the amplified audio signals to the speaker lines when the optional power amplifier modules are mounted. It is possible to make an Emergency Warning Broadcast assigned a higher priority than the Emergency broadcast. Two patterns of the Emergency broadcast can be activated simultaneously. Compatible with network, the system can be configured in distributed arrangement. Features include the following functions: Digital signal processing function that enables appropriate acoustic adjustment for individual input sound sources and output amplifiers, Feedback suppressor function that automatically suppresses acoustic feedback when it occurs, VOX function that allows start/stop control of broadcast by way of an audio trigger, and ANC function that enables an ambient noise control. (The ANC function distinguishes between the unit's output sound and the ambient noise. The unit's output sound is not detected as noise.) Indicators that show such statuses as fault status and power amplifier signal status are provided. It has 16 speaker output channels.
The number of mountable amplifier modules is up to 2 when used as zone amplifiers or a total of 2 when one is used as standby amplifier and the other as zone amplifier. When one module for zone amplifier use is mounted, the VX-3016F can be used as 1-bus/16-zone output speaker selector. When 2 modules for zone amplifier use are mounted, it can be used as 2-channel 1-bus/8-zone output speaker selector.
Zones can be expanded by connecting the unit having amplifier module(s) and the one having no amplifier module. As the VX-3016F is equipped with Standby amplifier input/output terminal, the standby amplifier, when mounted, can be shared among VX-3000F units.
- Up to 2 amps (16 switched zones + standby amp or 2 x 8 switched zones)
- All mandatory indications by EN54-16
- Status indication for each speaker line
- Fault acknowledge and lamp test button
- Input DSP: flexible filtertypes and compressor
- Output DSP: flexible filtertypes, compressor and delay up to 2.7 sec.
Network I/F: 100BASE-TX
Network Protocol: TCP, UDP, ARP, ICMP, RTP, IGMP, FTP, HTTP, NTP
Spanning tree Protocol: RSTP
Audio Transmission System: TOA Packet Audio(*1)
Audio Encoding Method: PCM
Audio Sampling Frequency: 48 kHz
Audio Quantifying Bit number: 16 bits
Connection Device: VX-3004F, VX-3008F, VX-3016F, NX-300, VX-3000PM, VX-3000CT, and Switching HUB
Connector: RJ45 connector
Connection Cable: Category 5 twisted pair cable (CAT 5) or greater
Number of Stages of Cascade connection: Up to 7
Maximum Cable Distance: 100m (328.08 ft)
Audio input level; 0 dB (*2)
Power feed: Max. 1 A per connector
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP) or greater
Maximum cable distance: 1200 m (3937.01 ft)
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP)
Maximum Cable Distance: 5 m (16.4 ft)
Connection Device: VX-3004F, VX-3008F, VX-3016F
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5-STP) or greater
Maximum Cable Distance: 800 m (2624.67 ft)
Sensitivity
Line: -20 dB(*2)/ MIC: -60 dB(*2)
LINE/MIC/ANC sensor (changeable with setting software)
Gain Control: volume adjustable with volume control (internal front panel) -∞ to 0 dB
Input Impedance: 47kΩ electronically-balanced
Frequency Response: 40 Hz - 20 kHz ±1 dB (at DA CONTROL LINK, 0 dB output)
Distortion: 1% or less (at DA CONTROL LINK, 0 dB output, 1 kHz)
Signal to Noise Ratio: 60 dB or more (at DA CONTROL LINK, A-weighted)
Phantom Power Supply: 24 V DC, can be set with setting software
Connector: Removable terminal block (6 pins): 2
Fault Detection System: Short circuit, Open circuit, Method: Voltage detect
Connector: RJ45 connector
Connection Cable: Shielded Category 5 twisted pair cable (CAT5_STP) or greater
Connector: RJ45 connector
Connection Cable: Category 5 twisted pair cable (CAT5) or greater
Hysteresis: 0 to +10 dB; Hold time: 10 ms – 10 s
Settable for each audio input
Exclusive outputs : 3 with CONTROL OUTPUT 2; GENERAL FAULT, CPU FAULT, CPU OFF
No-voltage make contact, electrical contact output, control current: 10 mA ; withstand voltage: 28 V DC
Connector: RJ45 connector
Connection cable: Shielded Category 5 twisted pair cable (CAT5-STP)- or greater
Connector: Removable terminal block (12 pins) x 4
Settable for each audio input and RS LINK (A/B)
6 bands for each amplifier output
Parametric equalizer: 20 Hz - 20kHz, ±15 dB, Q 0.267 - 69.249
Filtering:
High-pass filter 20- Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Low-pass filter 20- Hz - 20 kHz, 6 dB/oct, 12 dB/oct
High shelving filter 6 - 20 kHz, ±15 dB
Low shelving filter 20 - 500 kHz, ±15 dB
Notch filter (amplifier output only) 20 Hz - 20 kHz, Q: 8.651 - 69.249
All-pass filter (amplifier output only) 20 Hz - 20 kHz, Q: 0.267 - 69.249
Horn equalizer (amplifier output only) 20 kHz, 0 to +18 dB (0.5 dB steps)
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
Attack time: 0.2 ms - 5 s, Release time: 10 ms - 5 s
Gain: -∞ to +10 dB, Knee type: hard knee, middle knee, soft knee
Minimum output signal level control: -18 to -3 dB
Sample time setting: 10 s, 20 s, 30 s, 1 min, 5 min
Gain ratio setting: (Ambient noise: Output signal level) 6:3, 5:3, 4:3, 3:3, 3:4, 3:5, 3:6
Ambient noise measuring frequency setting: 20 Hz - 20 kHz, 3 points
Connector: Removable terminal block (17 pins) x 1
Fault detection system: Short circuit, Open circuit, Ground fault, Method: Impedance or End of line
DA CONTROL LINK: 2
DA OUTPUT LINK: 2 (Used only when a power amplifier module is installed)
FAULT STATUS (yellow)
GENERAL: 1, UNIT: 1, NETWORK: 1, EMG MIC: 1, FUSE: 1, POWER: 1, CPU: 1, ZONE: 8
AMPLIFIER
PEAK (red): 2, SIGNAL (green): 2, OPERATE (green): 2, POWER (green): 2
Test Switch: 1 (LAMP TEST)
Setting Switch: ID NUMBER, RESET, IMPEDANCE, Setting (internal front panel)
Removable terminal plug (4 pins): 1 , Removable terminal plug (6 pins): 2
Removable terminal plug (12 pins): 2 , Removable terminal plug (17 pins) :1,
CD (PC settinq software): 1 , Ferrite clamp: 2
